Easy-Lift Wall Bed Mechanism™ Specifications

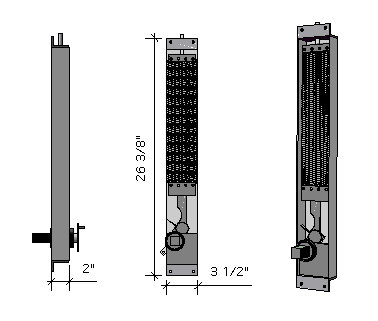

Mechanism Spring Case Specifications

BT 60 (6 Springs per Case) or BT 80 (8 Springs per Case)
2 Cases per Mechanism — 1 Left, 1 Right
Folded Steel Cases
High Tension Extension Springs

Springs Specifications

Maxi Diameter:: 485 lbs (220kg)
Wire Diameter : 1/8" (4.6mm)
72 Spirals with 2 Hooks
Length: 14-1/8" (360mm)
1" x 1" Solid Steel Mounting Stud
Short Rounded Spindle with Ballbearing
4,5,6,7 or 8 Springs per Case

European Slat System Specifications

5-Ply Beech Wood Arched Slats
5/16" thick x 2-3/16" wide x Twin, Full or Queen Size
Rubber Mounts for quiet comfort

Automatic Leg Assembly Specifications

Laser Cut 5/16" (8mm) Steel Legs
5/16 (8mm) Steel Leg connector Bar w/ Sprocket
2mm, 7 strand, 7 wire cable w/ Chain Link
Queen: 61-13/16" (1570mm)
Full: 56-7/16" (1434mm)
